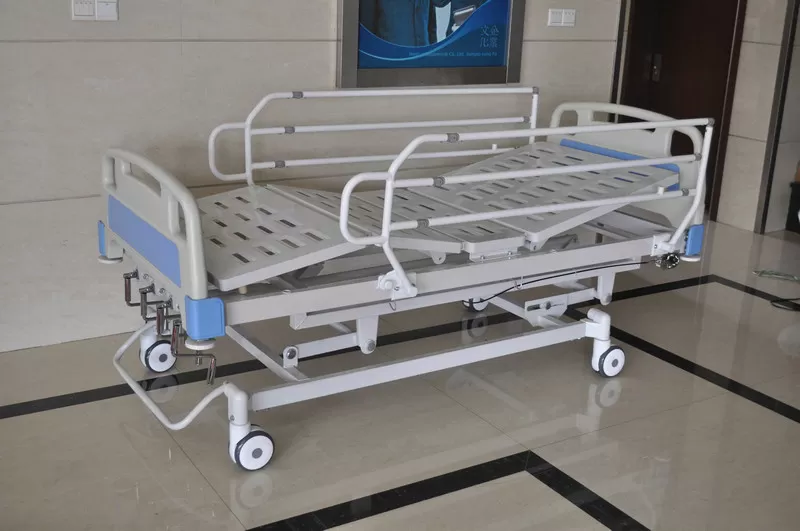

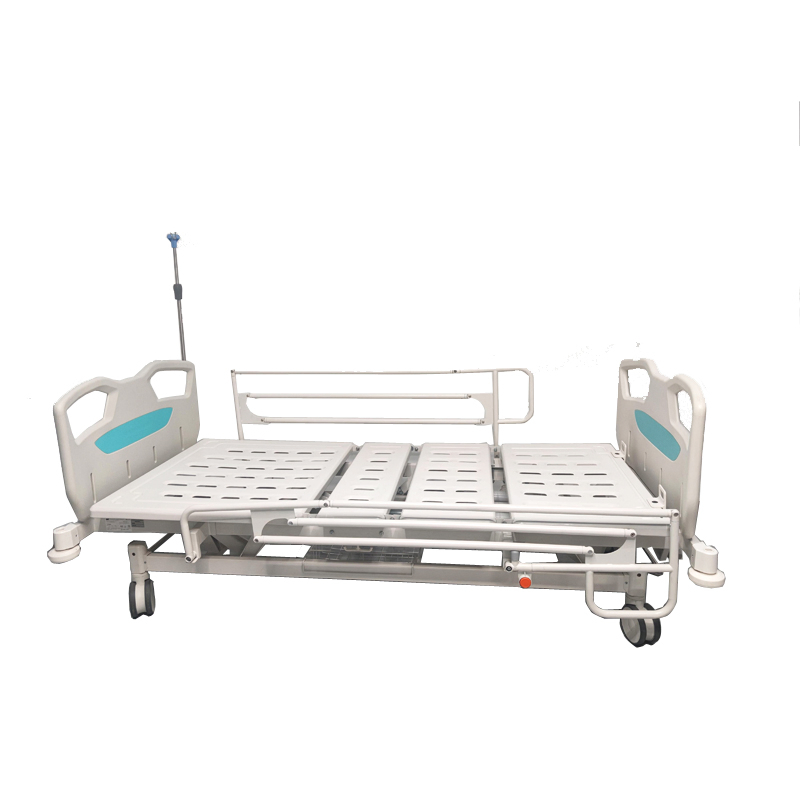

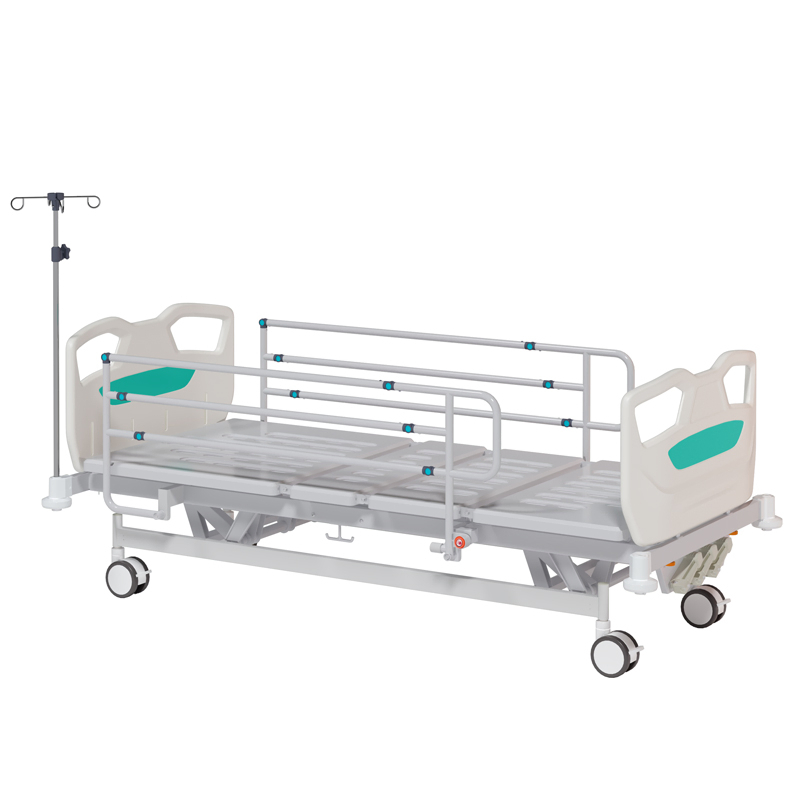

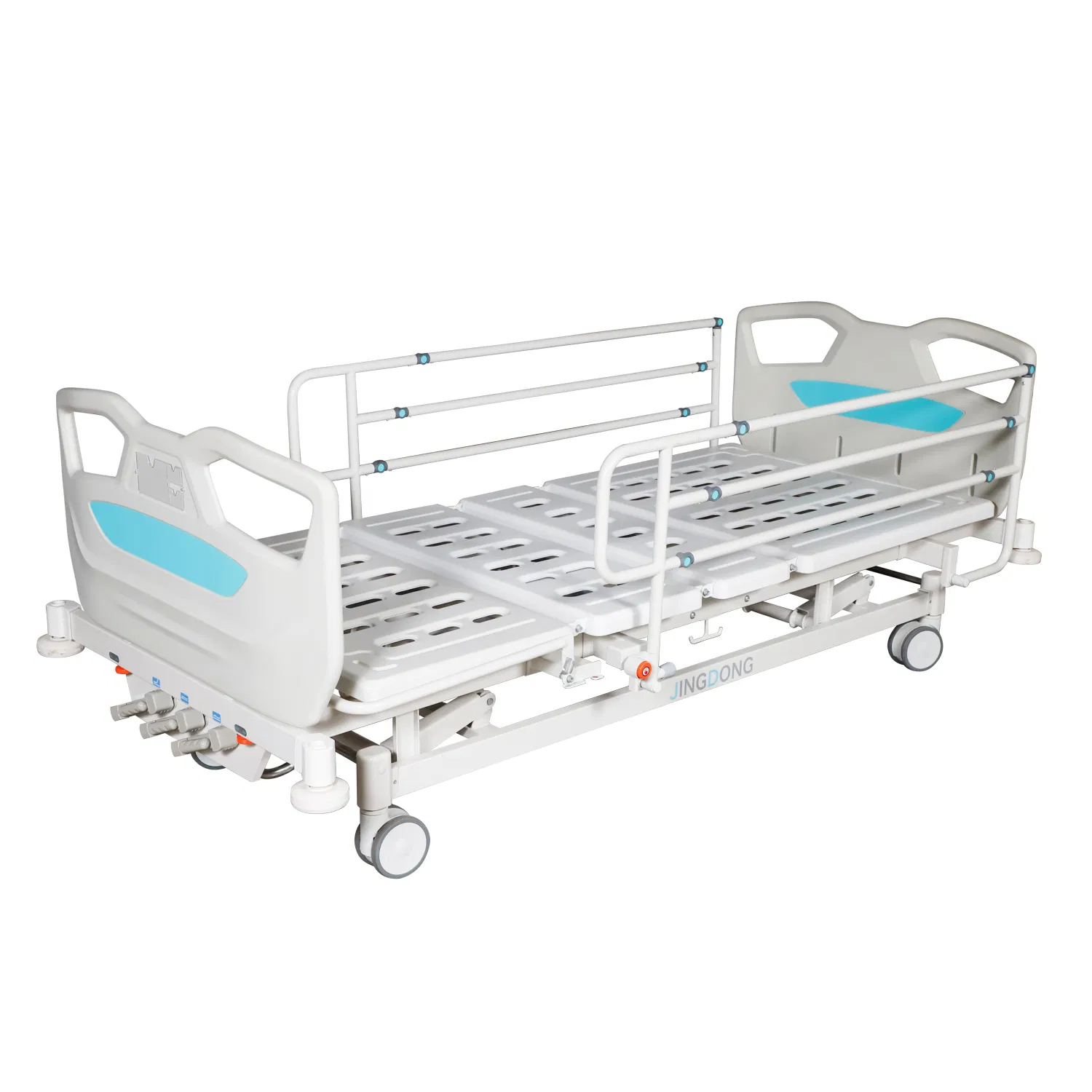

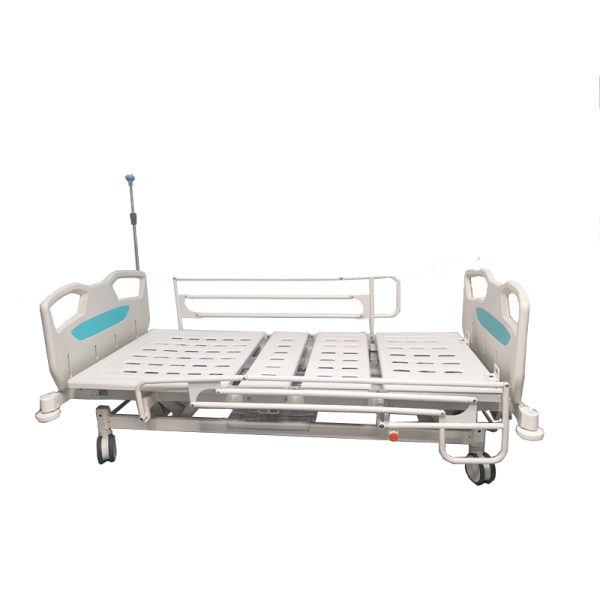

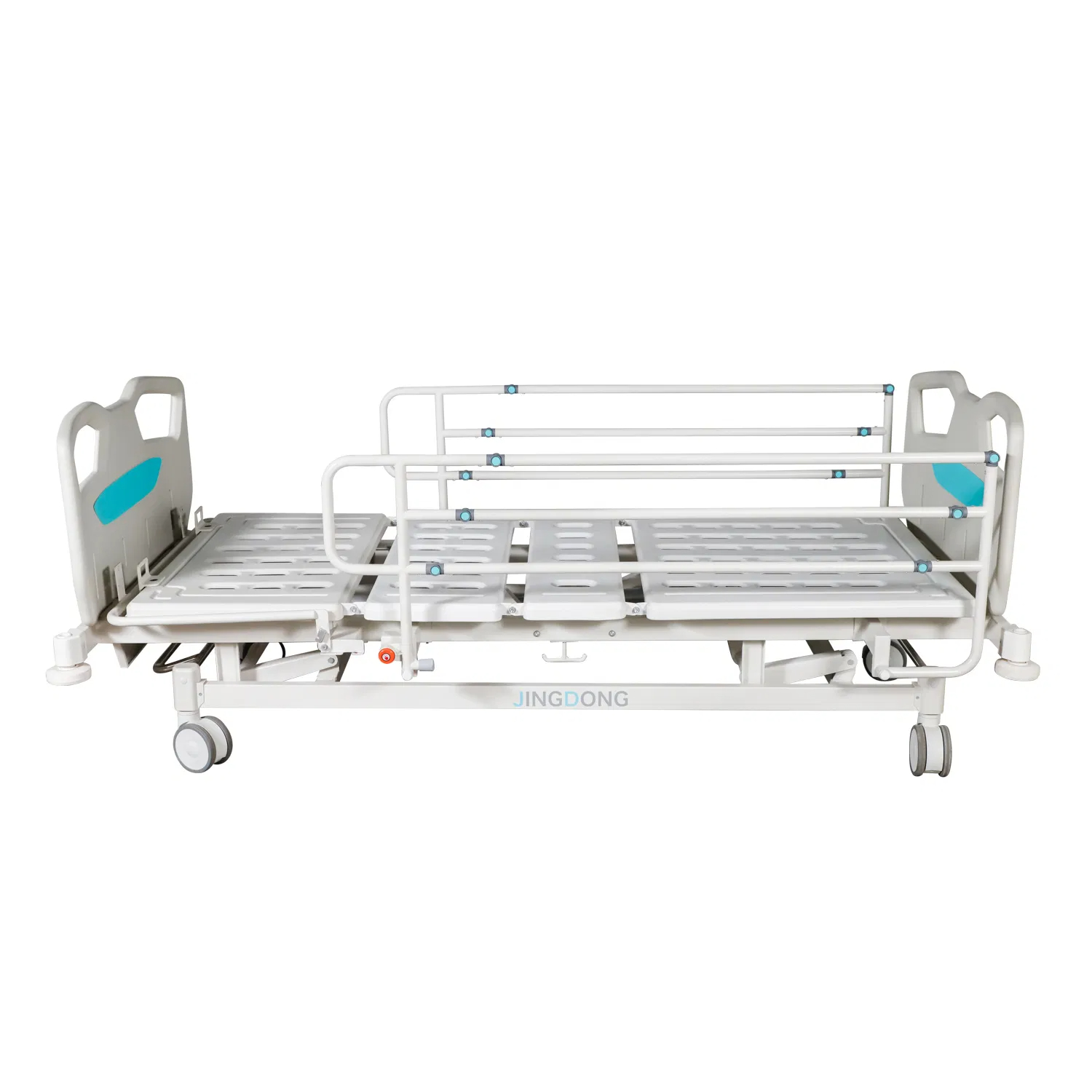

Topmedi Hospital Bed with Folding Steel Guardrails for Hospital Use
Min. Order: 1*40HQ(mix order acceptable)
Lead Time: 10-30 days
Shipping: From Tianjin Port By Sea
Packaging: Carton Or Customize
Payment: T/T, LC, D/P
Contact Us
Description
General Information
- Overall Size: 2160*1100 , 520-750mm
- Safe Working Load: 225kg（495 lbs）
- Functions: Backrest adjustment, Footrest adjustment, High-Low adjustment, Trendelenburg position, Reverse Trendelenburg position
- Color options: Green, Blue, Wood
- Customization: Available
- Certificate: CE / ISO
- Warranty: 3 years on frame and welds; 1 year on parts
Specifications
- Bed frame with electrophoresis and powder coating for durability.
- Bed platform: MS perforated platform with ventilation holes, molded for comfort and breathability.
- Handrails: Metal collapsible side rails for patient safety.
- Headboard and footboard: Detachable with easy locking mechanism for convenient access.
- Cranks: 4 foldable chrome cranks for manual adjustment of bed functions.
- Castors: Central brake system with 125mm diameter wheels for stable movement and secure locking.
- Bumper castors on all 4 corners to protect the bed and surrounding environment.
- Manual CPR capability on both sides for emergency situations.
Technical Parameters
- Overall Size (LWH): 2160*1100*520mm (85″ x 43″ x 20.5″)
- Lying surface: 2000*900mm (78.7″ x 35.5″)
- High-Low adjustment range: 520-750mm (20.5″ – 29.5″)
- Back section adjustment range: 0° to 75°
- Knee section adjustment range: 0° to 40°
- Trendelenburg position range: 0° to 12°
- Reverse Trendelenburg position range: 0° to 12°
Standard Accessories
- 2 pieces of head/foot board
- 2 pieces of side rails
- 1 set of bed frame
- 4 pieces of bed boards
- 4 pieces of casters
- 4 pieces of IV pole holder
- 1 piece of IV pole
- 2 pieces of drainage bag holders
