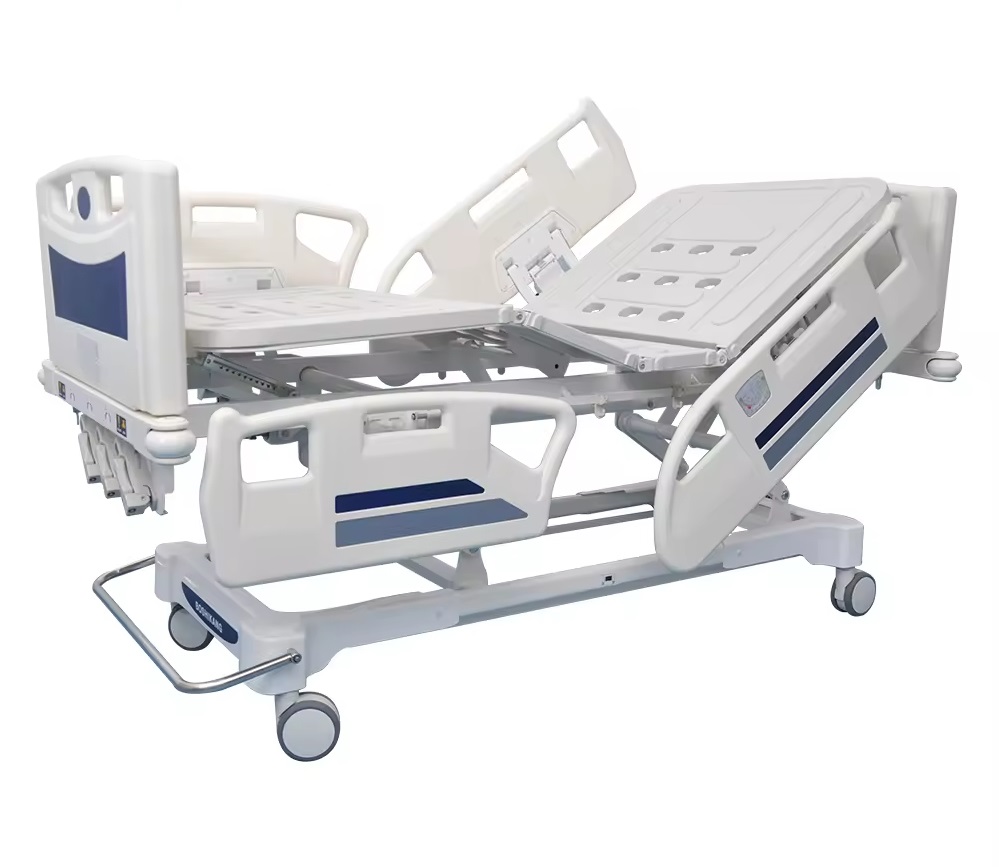

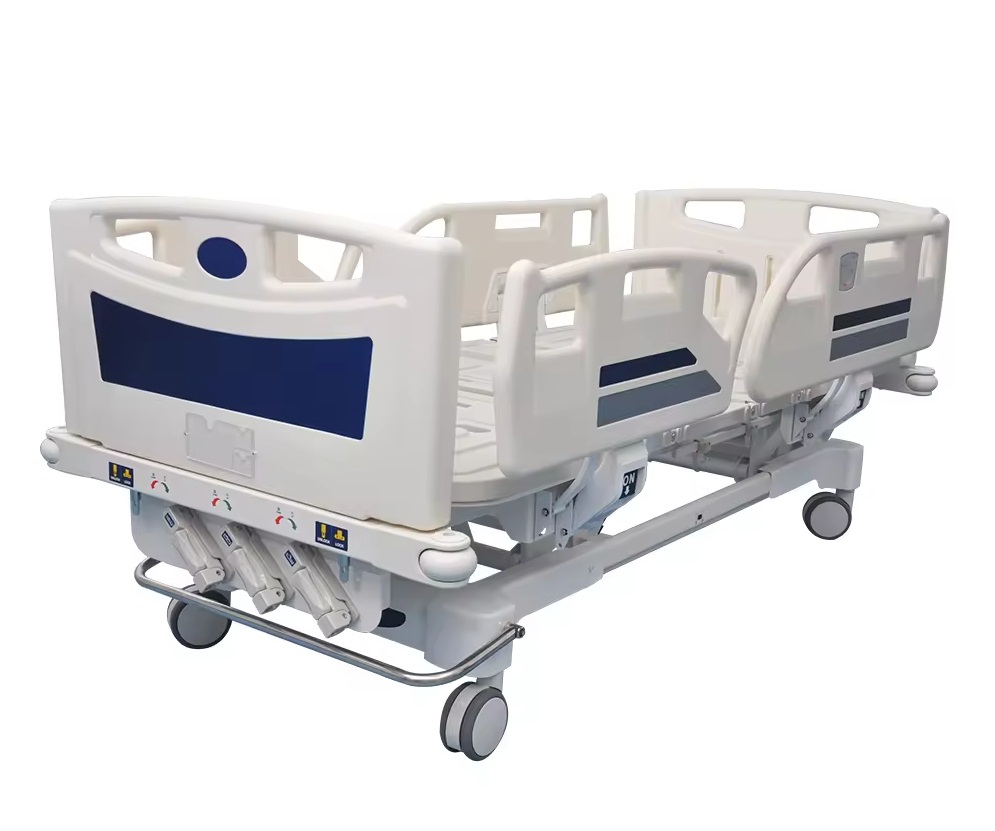

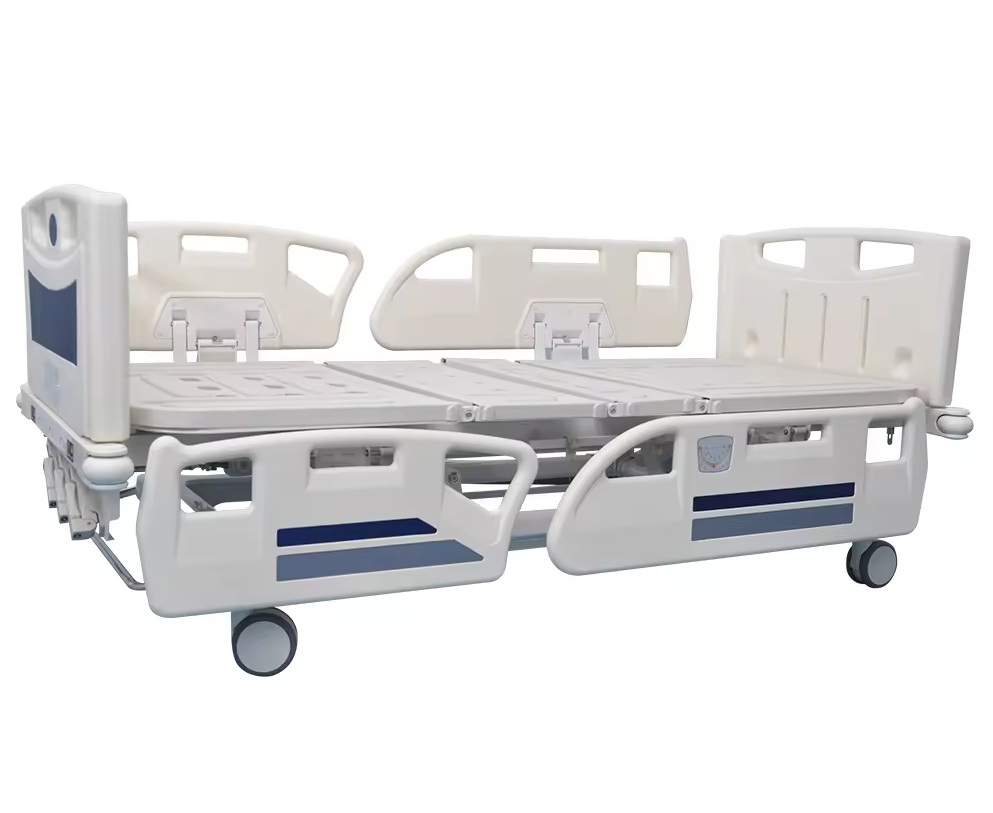

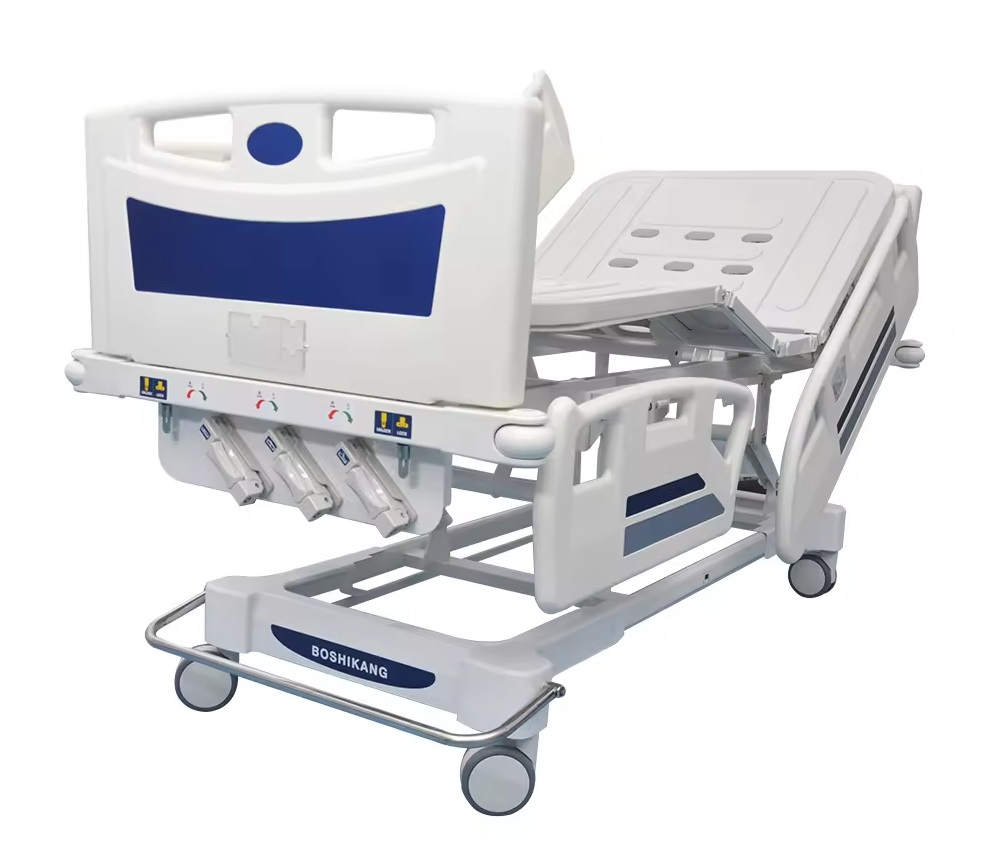

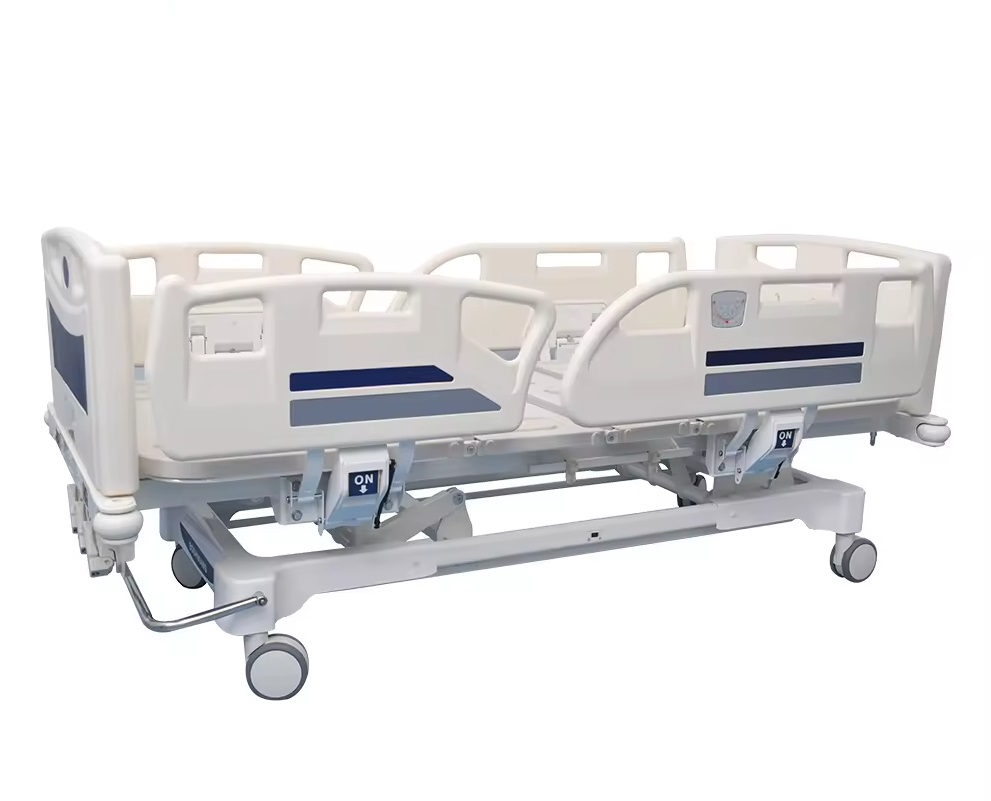

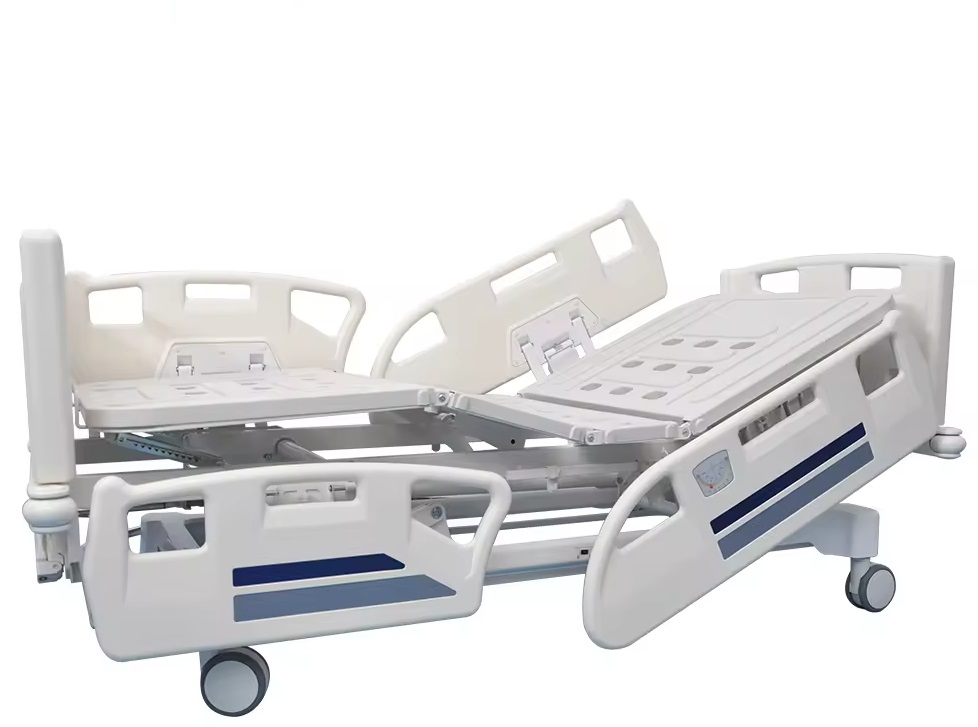

Three-Function Electric Hospital Bed with Central Brake

Description

General Information

• Type: Electric three-function hospital/medical bed
• Application: Hospitals, nursing homes, assisted living facilities, outpatient clinics, and home health care
• Instrument Classification: Class I
• Certifications: CE, ISO, CFS
• Warranty: 2-3 years (with an additional 1% of accessories included)
• After-Sale Service: Online technical support
• MOQ: 10 pieces
• OEM: Accepted

Key Functions

• Backrest lifting
• Knee rest lifting
• Height adjustment

Technical Specifications

• Bed Frame: Steel tube with powder coating for durability
• Head & Foot Board: ABS material, detachable for easy access and cleaning
• Side Rails: 4 pieces of foldable ABS rails for patient safety
• Castors & Locking: 125mm casters with central locking brake system for stable movement and secure positioning
• Backrest Adjustment Range: 0-75°
• Knee Rest Adjustment Range: 0-25°
• Height Adjustment Range: 430-650mm
• Weight Capacity: 260kg
• Overall Size: 2180 * 1060 *  430–650mm (packaging size: 225X110X48 cm)
• Bed Surface Size: 1960*900mm
• Weight: 80kg (gross weight: 120kg)

Configuration

• 3 linear motors for reliable electric operation
• 1 hand control unit for easy adjustments

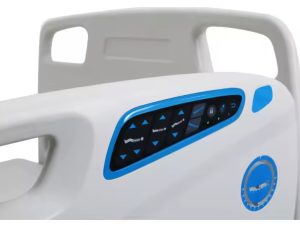

• 1 nurse control panel for caregiver convenience
• 4 casters (125mm, central brake)
• 4 ABS side rails
• 2 ABS head & foot boards
• 4-section mattress platform
• 1 IV pole
• 2 drainage hooks

Optional Accessories

• Mattress
• Infusion stand
• Drainage hook
• Storage rack
• Dining table
• Cabinet
