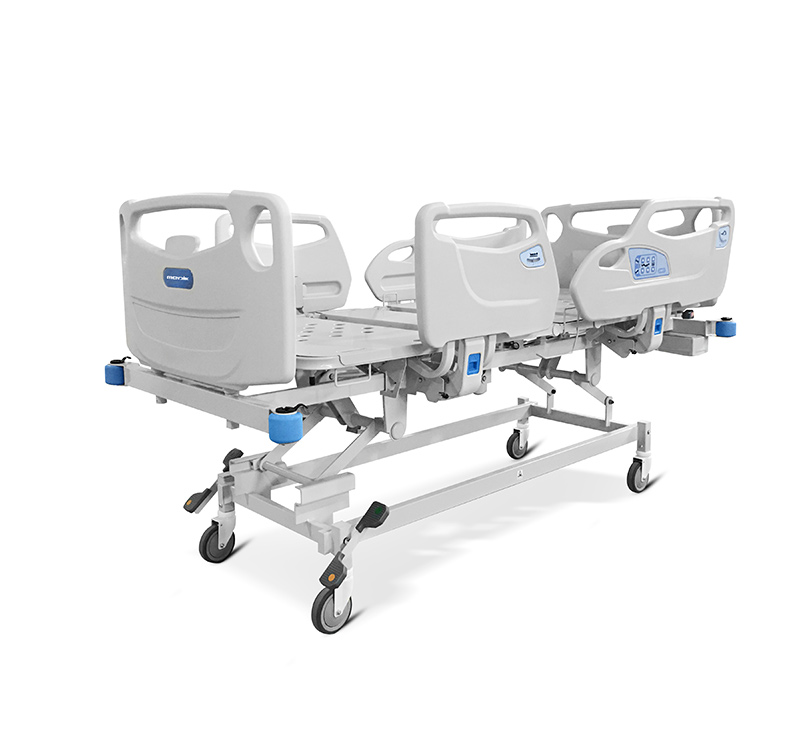

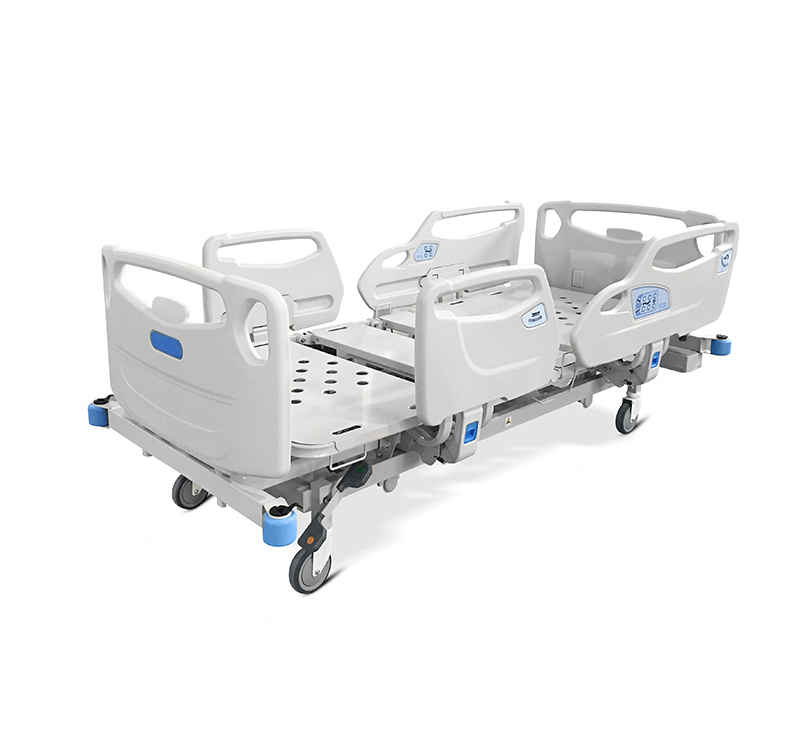

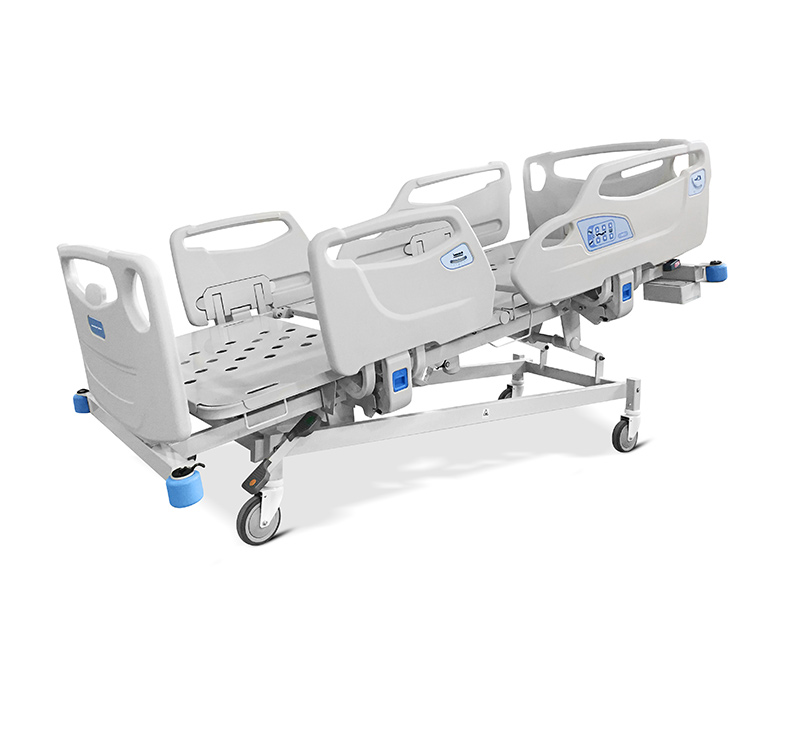

New Electric Adjustable Medical Bed
Min. Order: 1*40HQ(mix order acceptable)
Lead Time: 10-30 days
Shipping: From Tianjin Port By Sea
Packaging: Carton Or Customize
Payment: T/T, LC, D/P
Contact Us
Description
General Information
- Overall Size: 2230*1000 , 465~765mm
- Safe Working Load: 220kg (loading capacity: 230kg/507lbs)
- Functions: Backrest adjustment, Footrest adjustment, High-Low adjustment, Trendelenburg position, Reverse Trendelenburg position, CPR function
- Certificate: ISO/CE
- Motor: Jiechang motor (with options for Linak/Timotion/Dewert motor)
- Warranty: 3 years on frame and welds; 1 year on parts
- After-sale Service: Online technical support
- Customization: Available
Key Features
This medical bed features a compact design with an elegant appearance, ensuring ease of operation. Its wide height adjustment range facilitates various medical procedures.
- Embedded railing control with visible icons; includes a nurse control panel facing outward and a patient-facing panel with limited buttons for safe, intuitive operation.
- Central brake system equipped with dual braking pedals on both sides, allowing easy and reliable maneuvering.
- Bumper casters positioned at all four corners to protect the bed and surrounding environment during movement.
- Manual CPR levers located on both sides for quick access during emergencies.
- Angle indicators on the railings, with the 30° mark for back section adjustment clearly highlighted to meet frequent usage needs.
Technical Parameters
- Size: 22301000465mm (87.7″ x 39.3″ x 18.3″)
- Bed surface dimensions: 1937*865mm (76.2″ x 34″)
- Backrest adjustment range: 0-70°
- Footrest adjustment range: 0-25°
- Calf section adjustment range: -15°-15°
- Height adjustment range: 465-765mm (18.3″ – 30.1″)
- Trendelenburg position range: 0-12°
- Reverse Trendelenburg position range: 0-12°
- CPR function: Available
