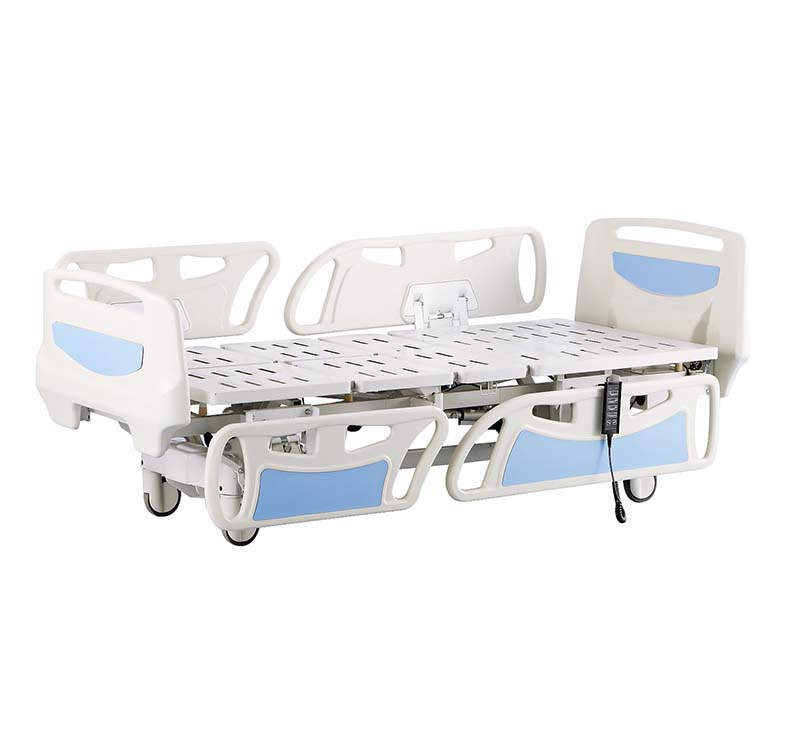

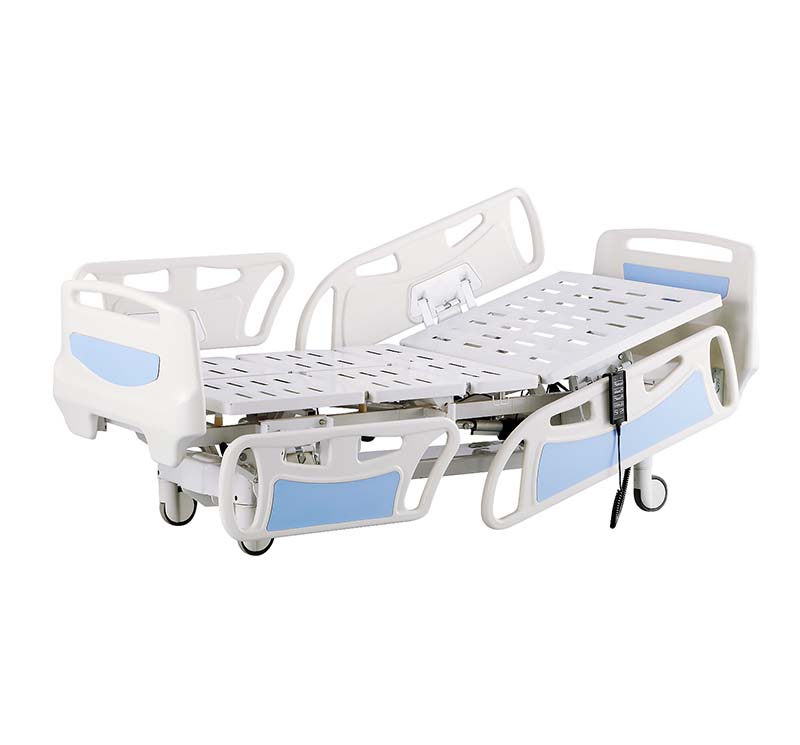

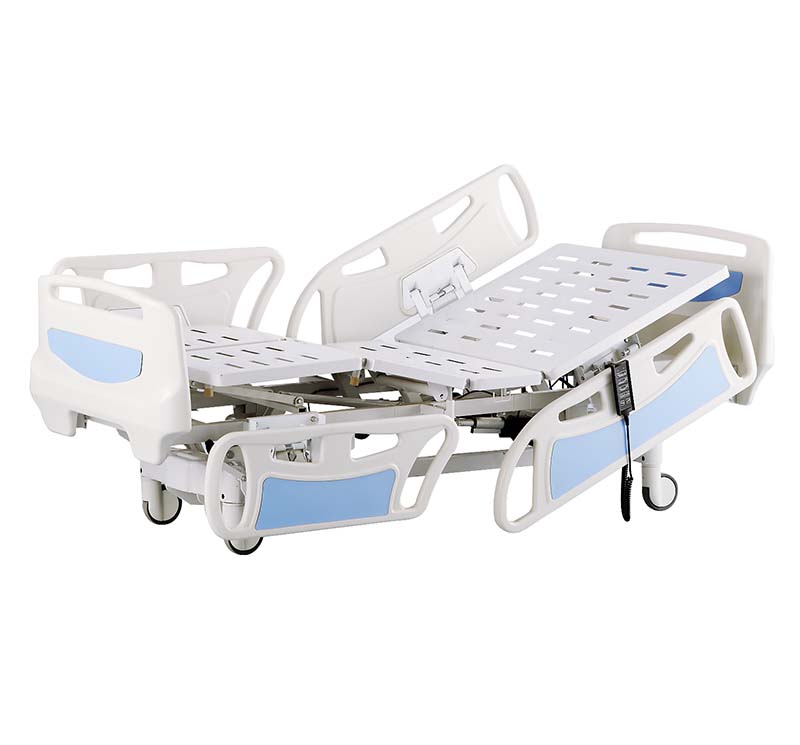

Electric Hospital Room Bed With Railing Control

Description

General Information

• Overall Size: 2200*1060  ,  510-800mm
• Safe Working Load: 225kg（496 lbs）
• Functions: Backrest adjustment, Footrest adjustment, High-Low adjustment, Trendelenburg position, Reverse Trendelenburg position
• Color options: Green, Blue, Yellow
• Motor: Jiechang motor (with options for Linak, Timotion, Dewert motor)
• Warranty: 3 years on frame and welds; 1 year on parts
• After-sale Service: Online technical support
• Certificate: CE / ISO
• Customization: Available

Specifications

• Bed frame with electrophoresis and powder coating for durability.
• Removable ABS bed platform.
• Quiet and robust electric actuators ensuring reliable operation.
• Built-in controller to manage all electrically operated functions and movements.
• 4 ABS side rails with tuck-away design, collapsible below the bed surface.
• ABS headboard and footboard, detachable for convenience.
• Central brake system with wheels of 125mm in diameter.
• Hand remote control for easy operation.
• Patient control integrated into the side rails.
• Nurse control hanging on the footboard.
• Optional angle indicators embedded in the rails for backrest and Trendelenburg position adjustments.
• Auto-counter function to prevent patients from sliding toward the foot end.
• Electric CPR function controlled by a single button on the side rails.

Technical Features

• Size: 2200*1060*510mm (86.6″ x 41.7″ x 20″)
• Recommended mattress size: 1960*900mm (77.1″ x 34.4″)
• High-Low adjustment range: 510-800mm (20″ – 31.4″)
• Back section adjustment range: 0° to 75°
• Knee section adjustment range: 0° to 40°
• Trendelenburg position range: 0° to 12°
• Reverse Trendelenburg position range: 0° to 12°

Standard Accessories

• 2 pieces of head/foot board
• 4 pieces of side rails
• 1 set of bed frame
• 4 pieces of bed boards
• 4 pieces of casters
• 4 pieces of IV pole holder
• 1 piece of IV pole
• 2 pieces of drainage bag holders
