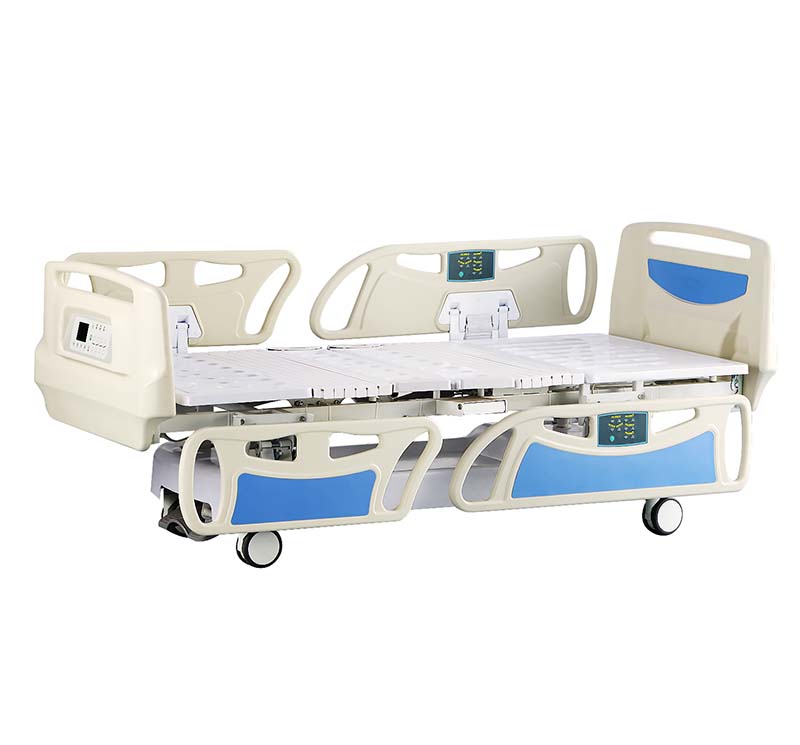

Automatic Hospital ICU Bed With Weighing Scale

Description

This ICU bed is designed to maximize patient safety while facilitating effective rehabilitation with minimal incidents.

Key Features

• Four split side rails that can be dropped down.
• Integrated rail controls with easily recognizable icons.
• Nurse controls integrated into the foot panel, accompanied by an LED display showing the movement status.
• Detachable headboards and footboards with easy locking mechanisms.
• A central braking system with casters of 150mm in diameter.
• Manual CPR capabilities on both sides.
• Bumper casters at all four corners.
• Automatic regression function to relieve abdominal pressure when adjusting the backrest.
• An auto-counter to prevent patients from sliding toward the foot end.
• A full-length X-ray translucent platform.
• Equipped with a base chassis cover.
• Electric CPR functionality.
• Optional direction wheel function.
• Optional weighing function.
• Optional angle indicators embedded in the rails for backrest and Trendelenburg position adjustments.

Technical Parameters

• Overall dimensions: 2200*1060*520mm (86.5″ x 42″ x 20.5″)
• Lying area dimensions: 1900*900mm (75″ x 35.5″)
• Height adjustment range: 520-770mm (20.5″ – 30″)
• Back section adjustment angle: 0-75°
• Foot section adjustment angle: 0-40°
• Trendelenburg position angle: 0-12°
• Reverse Trendelenburg position angle: 0-12°
• Safe load capacity: 225kg (495 lbs)
• Caster diameter: 6″

Accessories

• IV stand
• Urine bag hook
• Nurse controller
• Optional accessories:
  • Weighing scale
  • Bed exit alarm
  • Steering wheel function
  • Oxygen tank holder
  • Angle indicator
  • Mattress
