7 Function Electric Hospital Patient ICU Bed
Min. Order: 1*40HQ(mix order acceptable)
Lead Time: 10-30 days
Shipping: From Tianjin Port By Sea
Packaging: Carton Or Customize
Payment: T/T, LC, D/P
Contact Us
Description
This bed is designed for intensive care and patient comfort in medical settings, offering a range of features to support both patients and healthcare staff.
Product Parameters
| Parameter | Details |
|---|---|
| Material | Steel framework, top-class ABS & PP plastic |
| Overall Dimension | 2260mm(L) * 1100mm(W) * 535-720mm(H) |
| Bed Board Size | 1940mm(L) * 900mm(W) |
| Hi-Low Adjustment | 535mm – 720mm |
| Back-Rest Angle | 0 – 65º±5º |
| Leg-Rest Angle | 0 – 40º±5º |
| Trendelenburg Angle | 0 – 10º±5º |
| Castors | 150mm diameter universal casters with central brake; electric brake & un-brake |
| Packaging | Honeycomb carton |
| Carton Size | 2150mm X 975mm X 650mm |
| Net Weight/Gross Weight | 158kgs / 182kgs |
Key Features
- User-Friendly Controls: Equipped with easily operated touch switches for intuitive use.
- Reset Function: Allows the bed to quickly return to the “zero” (neutral) position.
- Backup Battery: Ensures functionality during emergency power failures, maintaining critical operations.
- Electric Central Locking Castors: Simplifies bed movement and securing with electric control.

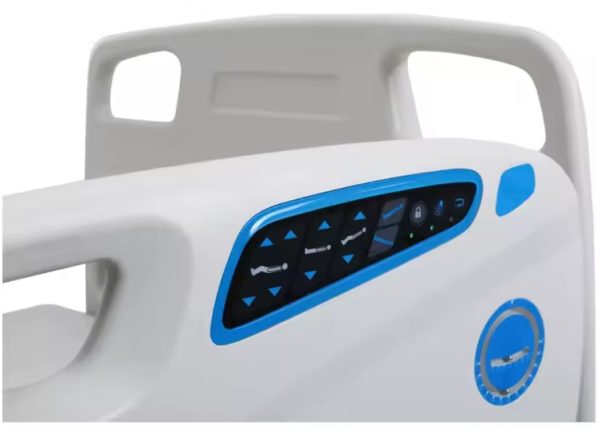

- Integrated Control Interfaces: Touch switches embedded in 2 head-side rails, plus a 10.2″ touch screen on the footboard for comprehensive control.
- Detachable Components: PP plastic head and foot boards, easy to remove for cleaning or patient transfer.
- Foldable Side Rails: 4 pieces of PP side rails with angle indicators, controlled by gas springs for smooth operation and safety.
- Enhanced Comfort: Bed boards feature soft connections, ensuring smooth bending to reduce patient discomfort during adjustments.
- IV Pole Compatibility: Mount brackets at all 4 corners of the bed frame for convenient IV pole attachment.
- Data Management: Stores and retrieves bed position data for consistent care; includes a weight scale function with data storage and management capabilities.
- Safety Alerts: Off-bed alarming system to monitor patient movement and prevent falls.
This 7-function electric hospital bed is engineered to meet the demands of intensive care units (ICUs) and general hospital wards, prioritizing patient safety, comfort, and ease of use for medical staff.
